Generating neutral landscapes ​

The purpose of this vignette is to demonstrate how we can use the NeutralLandscapes package to generate random spatial structures.

This functionality is supported through an extension, which is only active when the NeutralLandscapes package is loaded.

julia
using SpeciesDistributionToolkit
using CairoMakie
using NeutralLandscapes
Precompiling packages...
Info Given MakieExtension was explicitly requested, output will be shown live
WARNING: Method definition plot!(Makie.Plot{Phylopic.silhouetteplot, var"#s38"} where var"#s38"<:Tuple{AbstractArray{var"#s37", 1} where var"#s37"<:Real, AbstractArray{var"#s36", 1} where var"#s36"<:Real, AbstractArray{var"#s35", 1} where var"#s35"<:Phylopic.PhylopicSilhouette}) in module MakieExtension at /home/runner/work/SpeciesDistributionToolkit.jl/SpeciesDistributionToolkit.jl/Phylopic/ext/MakieExtension.jl:45 overwritten at /home/runner/work/SpeciesDistributionToolkit.jl/SpeciesDistributionToolkit.jl/Phylopic/ext/MakieExtension.jl:55.
ERROR: Method overwriting is not permitted during Module precompilation. Use `__precompile__(false)` to opt-out of precompilation.
   5527.9 ms  ? Phylopic → MakieExtension
WARNING: Method definition plot!(Makie.Plot{Phylopic.silhouetteplot, var"#s38"} where var"#s38"<:Tuple{AbstractArray{var"#s37", 1} where var"#s37"<:Real, AbstractArray{var"#s36", 1} where var"#s36"<:Real, AbstractArray{var"#s35", 1} where var"#s35"<:Phylopic.PhylopicSilhouette}) in module MakieExtension at /home/runner/work/SpeciesDistributionToolkit.jl/SpeciesDistributionToolkit.jl/Phylopic/ext/MakieExtension.jl:45 overwritten at /home/runner/work/SpeciesDistributionToolkit.jl/SpeciesDistributionToolkit.jl/Phylopic/ext/MakieExtension.jl:55.
ERROR: Method overwriting is not permitted during Module precompilation. Use `__precompile__(false)` to opt-out of precompilation.

This is simply achieved through an overload of the SDMLayer constructor, taking a neutral landscape maker, and a size:

julia
L = SDMLayer(DiamondSquare(), (100, 100))
🗺️  A 100 × 100 layer with 10000 Float64 cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

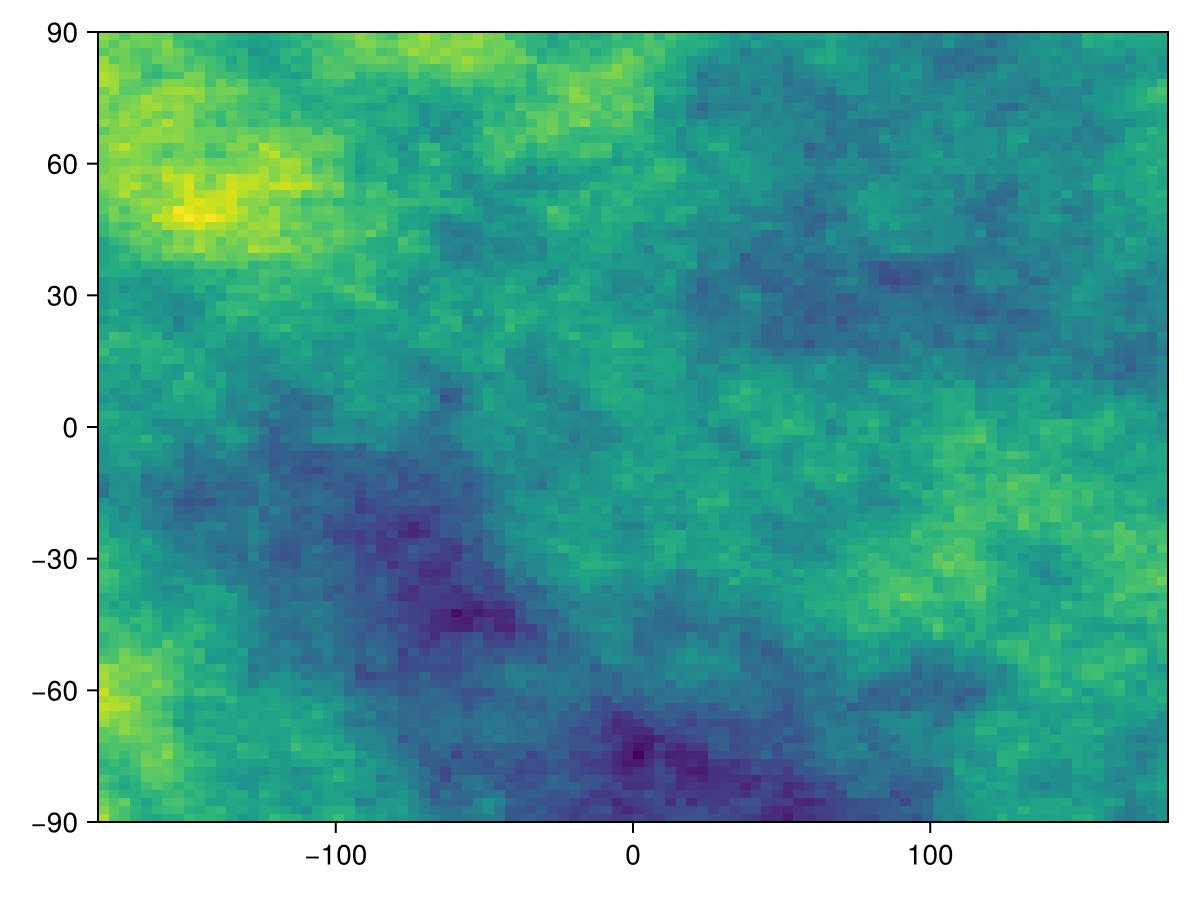

Code for the figure
julia
heatmap(L)

If we have a layer already, it can be used in place of the size argument, in which case the mask of the layer is also preserved. This is useful to rapidly fill layers that have the same structure with random data.

Finally, the SDMLayer constructor, when used this way, accepts keyword arguments like the crs of the layer, as well as its x and y fields. This is important if you want to ensure that the generated data can be overlaid on an actual layer with coordinates and projections.

Note that by default, the returned layer will be entirely filled. You can mask parts of it using nodata, or by masking it with a layer containing actual data.

SimpleSDMLayers.nodata Function
julia
nodata(layer::SDMLayer, args...)

Makes a copy and calls nodata! on it

source
SimpleSDMLayers.nodata! Function
julia
nodata!(layer::SDMLayer{T}, nodata::T) where {T}

Changes the value of the layer representing no data. This modifies the layer passed as its first argument.

source
julia
nodata!(layer::SDMLayer{T}, f)

Removes the data matching a function

source
julia
nodata!(layer::SDMLayer, v)

Turns off all cells containing the value v. This is an overload only applied when v is not of the correct type for layer.

source
SimpleSDMLayers.mask! Function
julia
mask!(layer::SDMLayer, template::SDMLayer)

Updates the positions in the first layer to be those that have a value in the second layer.

source
julia
SimpleSDMLayers.mask!(layer::SDMLayer, poly::T) where T<:Union{Polygon,MultiPolygon}

Turns off all the cells outside the polygon (or within holes in the polygon). This modifies the object.

source
