Conformal prediction of species range ​

This tutorial goes through some of the steps outlined in ???. We will use conformal prediction to identify areas in space in which a SDM is uncertain about the outcome of presence and absence of the species.

julia
using SpeciesDistributionToolkit
using CairoMakie

We will work on the distribution of Sasquatch observations in Oregon.

julia
records = OccurrencesInterface.__demodata()
landmass = getpolygon(PolygonData(OpenStreetMap, Places); place = "Oregon")
records = Occurrences(mask(records, landmass))
spatial_extent = SpeciesDistributionToolkit.boundingbox(landmass)
(left = -124.70354461669922, right = -116.46315002441406, bottom = 41.99179458618164, top = 46.292396545410156)

We will train the model will all 19 BioClim variables from CHELSA2:

julia
provider = RasterData(CHELSA2, BioClim)
L = SDMLayer{Float32}[
    SDMLayer(
        provider;
        layer = x,
        spatial_extent...,
    ) for x in eachindex(layers(provider))
];

mask!(L, landmass)
19-element Vector{SDMLayer{Float32}}:
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)
 🗺️  A 517 × 990 layer (411408 Float32 cells)

We will generate pseudo-absences at random in a radius around each known observations. The distance between an observation and a pseudo-absence is between 40 and 130 km.

julia
presencelayer = mask(first(L), records)
absencemask =
    pseudoabsencemask(BetweenRadius, presencelayer; closer = 40.0, further = 120.0)
absencelayer = backgroundpoints(absencemask, 2sum(presencelayer))
🗺️  A 517 × 990 layer with 411408 Bool cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

Training the initial model ​

The model for this tutorial is a logistic regression, with self-interactions between variables, but no other interactive effects:

julia
model = SDM(RawData, Logistic, L, presencelayer, absencelayer)
hyperparameters!(classifier(model), :interactions, :self)
variables!(model, BackwardSelection)
variables!(model, ForwardSelection)
☑️  RawData → Logistic → P(x) ≥ 0.21 🗺️

We start by checking that this model is georeferenced. This is something we will rely on when putting the observations on the map near the end of the tutorial.

julia
isgeoreferenced(model)
true

Model performance

Conformal prediction requires a good model - it is important to cross-validate the model before calibrating the conformal predictor.

julia
cv = crossvalidate(model, kfold(model))
println("""
Validation MCC: $(mcc(cv.validation)) ± $(ci(cv.validation))
Training MCC:   $(mcc(cv.training)) ± $(ci(cv.training))
""")
Validation MCC: 0.8051736915714212 ± 0.07268039613990707
Training MCC:   0.7997759836801894 ± 0.00953929819610332

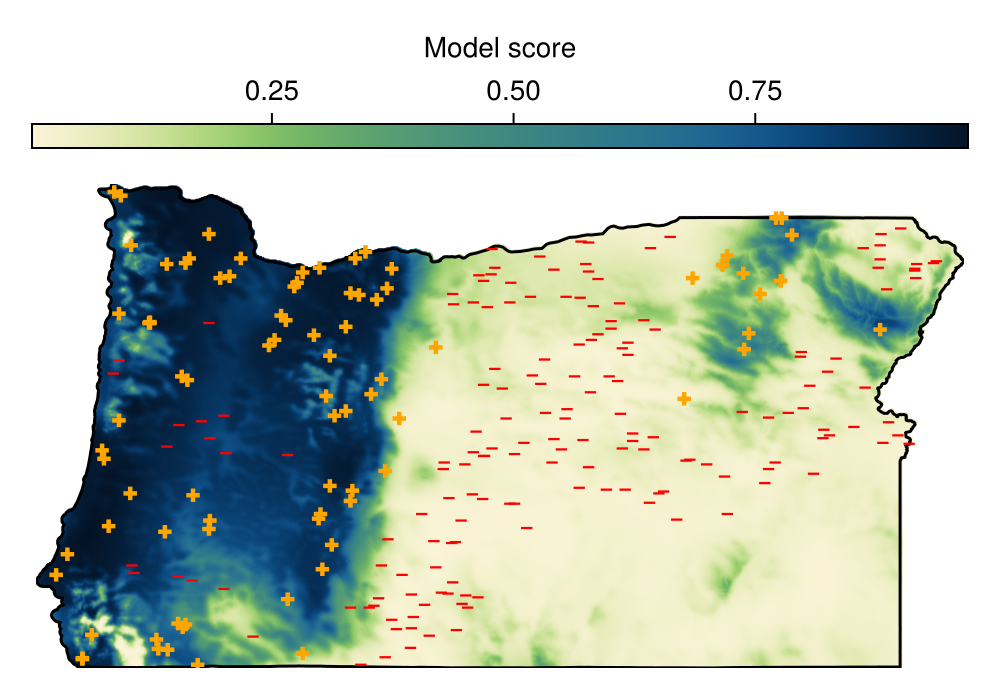

With a trained model, we can make our first (spatial) prediction

julia
Y = predict(model, L; threshold = false)
🗺️  A 517 × 990 layer with 411408 Float64 cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

Code for the figure
julia
f = Figure(; size = (500, 350))
ax = Axis(f[2, 1]; aspect = DataAspect())
hm = heatmap!(ax, Y; colormap = Reverse(:navia))
lines!(ax, landmass; color = :black)
scatter!(ax, model, color=labels(model), marker=[l ? :cross : :hline for l in labels(model)], colormap=[:red, :orange])
hidedecorations!(ax)
hidespines!(ax)
Colorbar(f[1, 1], hm; label = "Model score", vertical = false)

Calibrating the conformal classifier ​

train a conformal with alpha 0.05

julia
conformal = train!(Conformal(0.05), model)
Conformal{Float64}(0.05, 0.8342723329581786, 0.8253531215098517, true)

apply conformal

julia
present, absent, unsure, undetermined = predict(conformal, Y)
Base.Generator{Vector{Set{Bool}}, SpeciesDistributionToolkit.var"#22#23"{Dict{Set{Bool}, SDMLayer{Bool}}}}(SpeciesDistributionToolkit.var"#22#23"{Dict{Set{Bool}, SDMLayer{Bool}}}(Dict{Set{Bool}, SDMLayer{Bool}}(Set([0]) => 🗺️  A 517 × 990 layer (411408 Bool cells), Set([1]) => 🗺️  A 517 × 990 layer (411408 Bool cells), Set() => 🗺️  A 517 × 990 layer (411408 Bool cells), Set([0, 1]) => 🗺️  A 517 × 990 layer (411408 Bool cells))), Set{Bool}[Set([1]), Set([0]), Set([0, 1]), Set()])

note that if we want to get a single outcome, for example only the unsure predictions, we can pass it as a final argument there

julia
unsure = predict(conformal, Y, Set([true, false]))
🗺️  A 517 × 990 layer with 411408 Bool cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

We will turn this prediction into a polygon, which will help with some of the plotting we will do next:

julia
uns = polygonize(unsure)
MultiPolygon with 116 subpolygons

Turning layers into polygons is long

Not because this is a very hard problem – simply that because, for now, the code works, and it will work faster in a future release.

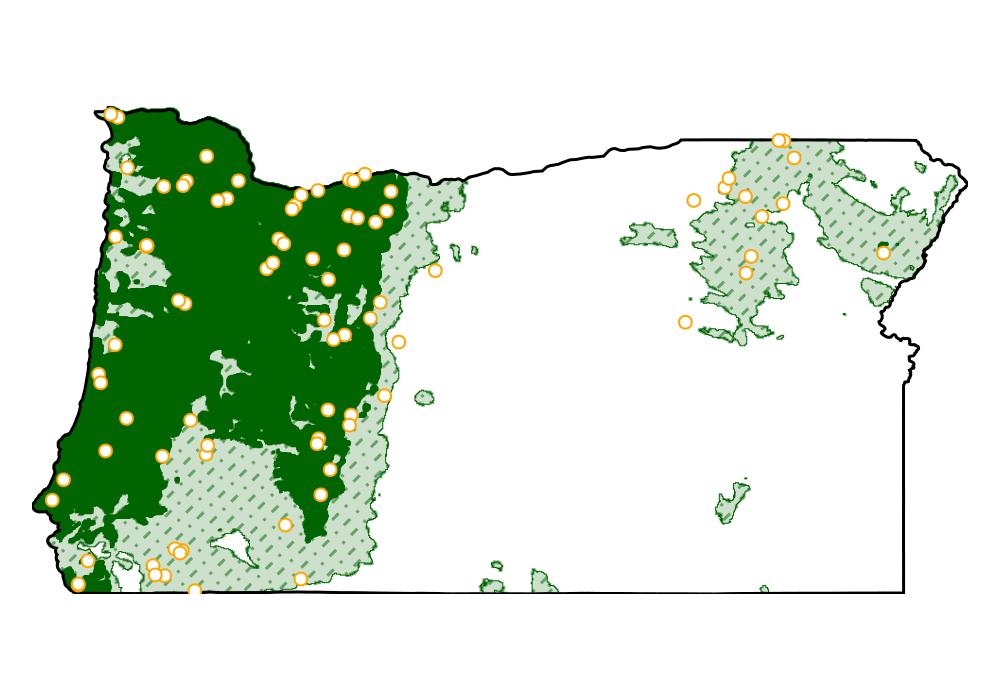

We can now visualize the part of the landscape where the model is confident about presence (dark green), where the outcome is uncertain (shaded area), and the areas where the model is certain about absence (light grey):

Code for the figure
julia
f = Figure(; size = (500, 350))
ax = Axis(f[1, 1]; aspect = DataAspect())
heatmap!(ax, nodata(present, false); colormap = [:darkgreen])
poly!(ax, uns, color=:darkgreen, alpha=0.2)
lines!(ax, crosshatch(uns; spacing=0.15, angle=45), color=:darkgreen, alpha=0.5, linestyle=:dashdot)
lines!(ax, uns, color=:darkgreen, linewidth=0.5)
lines!(ax, landmass; color = :black)
scatter!(ax, records; color = :white, strokecolor=:orange, strokewidth=1, markersize = 9)
hidedecorations!(ax)
hidespines!(ax)

Because the risk level α is set by the user, it is a good idea to change it, and measure how much of the area ends up associated to different types of predictions:

julia
rls = LinRange(0.01, 0.15, 15)
rangesize = zeros(Float64, 4, length(rls))
A = cellarea(Y)
🗺️  A 517 × 990 layer with 411408 Float64 cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

Stability of results

When looking at the effect of a parameter, it is useful to keep the same split of the data when measuring the response of the model. This ensures that the only thing that varies is the parameter itself. It is, similarly, a good idea to perform several replicates. Because we do none of these things here, the next figure will not display a smooth tendency.

We will do a simple loop to set the risk level, re-calibrate the conformal classifier, and then measure the range associated to each outcome:

julia
for (i, rl) in enumerate(rls)
    risklevel!(conformal, rl)
    train!(conformal, model)
    pr, ab, un, ud = predict(conformal, Y)
    rangesize[1, i] += sum(mask(A, nodata(pr, false)))
    rangesize[2, i] += sum(mask(A, nodata(ab, false)))
    rangesize[3, i] += sum(mask(A, nodata(un, false)))
end

Because the surface is large, we will express the range in more reasonable units:

julia
rangesize ./= 1e4
4×15 Matrix{Float64}:
  5.78115   3.93257   5.03889   3.52724   3.18287   3.32097   4.74592   4.58858   4.99727   3.00401   3.27892   8.50804   7.22592   9.38741   9.44635
 15.0437   14.5828   13.7239   14.9376   14.629    15.4873   15.5748   14.9154   16.1484   12.3588   15.827    15.0711   13.9278   13.7479   13.6259
  4.60624   6.91565   6.66827   6.96622   7.61914   6.62277   5.11034   5.92703   4.28534  10.0683    6.32512   1.85193   4.27734   2.29575   2.35877
  0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0       0.0

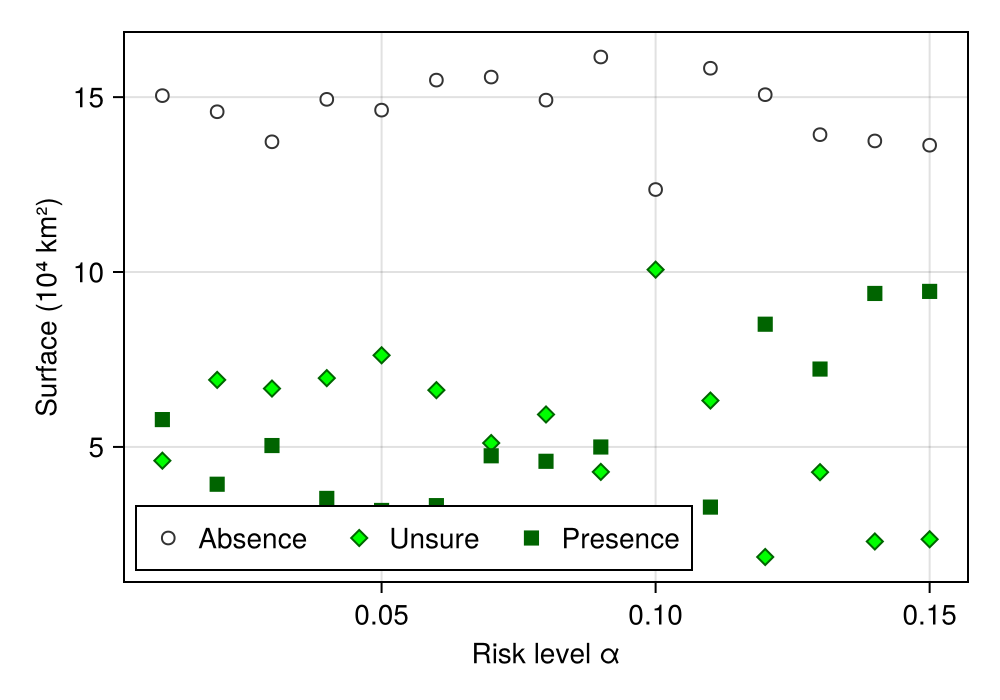

And now, we can plot:

Code for the figure
julia
f = Figure(; size = (500, 350))
ax = Axis(f[1, 1]; ylabel = "Surface (10⁴ km²)", xlabel = "Risk level α")
scatter!(ax, rls, rangesize[2, :]; label = "Absence", color=:white, strokecolor=:grey20, strokewidth=1)
scatter!(ax, rls, rangesize[3, :]; label = "Unsure", color=:lime, strokecolor=:darkgreen, strokewidth=1, marker=:diamond)
scatter!(ax, rls, rangesize[1, :]; label = "Presence", color=:darkgreen, marker=:rect, markersize=12)
axislegend(ax; position = :lb, nbanks = 3)

Continuous estimate of uncertainty ​

In this section, we will rely on conformal prediction and boostrapping to provide a more quantitative estimate of outcome uncertainty.

This is not best practice

Nothing that follows is a published technique, or even a particularly well tested idea. This section is included for the purpose of (i) notetaking, as this may be an idea worth exploring, and (ii) illustrating how the package can be used to do new things relatively easily.

We start by wrapping our model into a bagged ensemble of 50 sub-models:

julia
bagged = Bagging(model, 50)
train!(bagged)
{RawData → Logistic → P(x) ≥ 0.21} × 50

We will re-calibrate the conformal predictor (we previously changed it when estimating the range):

julia
risklevel!(conformal, 0.05)
train!(conformal, model)
Conformal{Float64}(0.05, 0.7710633743968286, 0.8859779397184411, true)

Because the bagged model is an homogenous ensemble, we can write our own consensus function to aggregate the outcome of each of the models in the ensemble. What we are after is, simply put, the proportion of models that, when passed to the conformal predictor, return a decision of "ambiguous", i.e. they can support both the true and false outcome.

julia
isunsure = (x) -> count(isequal(Set([true, false])), predict(conformal, x))/length(x)
#5 (generic function with 1 method)

With this function written, we can get the summary of how many models return the unsure decision, for each point in the layer:

julia
B = predict(bagged, L; threshold = false, consensus = isunsure)
🗺️  A 517 × 990 layer with 411408 Float64 cells
   Spatial Reference System: +proj=longlat +datum=WGS84 +no_defs

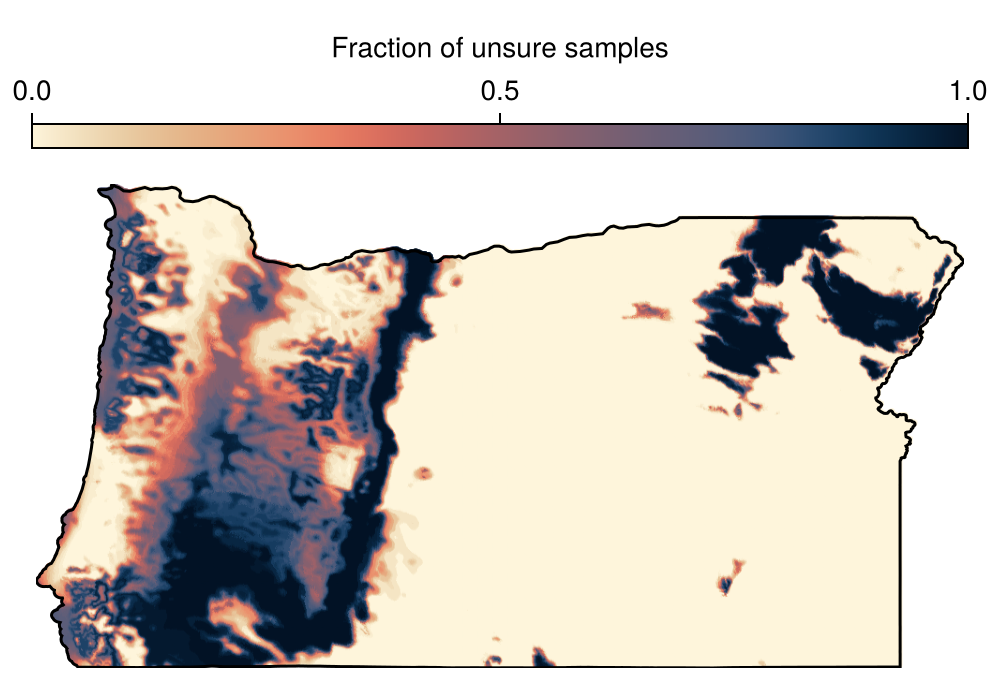

And we can finally plot this model, in order to identify areas where most of the predictions are uncertain:

Code for the figure
julia
f = Figure(; size = (500, 350))
ax = Axis(f[2, 1]; aspect = DataAspect())
hm = heatmap!(ax, B; colormap = Reverse(:lipari))
lines!(ax, landmass; color = :black)
Colorbar(f[1, 1], hm; label = "Fraction of unsure samples", vertical = false)
hidedecorations!(ax)
hidespines!(ax)
SDeMo.Conformal Type
